IP67 protective caps

Waterproof your connectors

IP67 protective caps

Waterproof your connectors

For Syntax® Bayonet multipin series connectors.
Male and female versions.

Our IP67 caps ensure
complete waterproof protection.
Our IP67 caps ensure
complete waterproof protection.

Environmental caps are available on request and provide complete IP67 protection on unmated connectors.
The use of protective caps results in:
- Extended life span of the connectors as the mating threads are protected against damage from impacts;
- Improved safety as contacts are protected against dust and water even when the connectors are not mated.

IP67 cap for male connectors
IP67 cap for male connectors

Bayonet multipin series
Bayonet multipin series

IP67 cap for female connectors
IP67 cap for female connectors

Bayonet multipin series
Bayonet multipin series

Size	Series	Connector versions	Part No. cap for female	Part No. cap for male
18	SPK	4 pin	SPK004TFSC	SPK004TMSC
20	SVK - SHD	13 - 19 pin	SVK013TFSC	SVK013TMSC
20	SB	20-15	SVK013TFSC	SVK013TMSC
22	SPK	8 pin	SPK008TFSC	SPK008TMSC
22	SB	22-1 \| 22-2 \| 22-22	SPK008TFSC	SPK008TMSC
24	SVK - SHD	25 pin	SVK025TFSC	SVK025TMSC
24	SB	24-11 \| 24-2	SVK025TFSC	SVK025TMSC
28	SVK - SHD	37 pin	SVK037TFSC	SVK037TMSC
28	SVS	72 pin	SVK037TFSC	SVK037TMSC
28	SV	-	SVK037TFSC	SVK037TMSC
28	SB	28A-9 \| 28-22 \| 28-3 \| 28-6 \| 28-10	SVK037TFSC	SVK037TMSC
32	SVK - SHD	54 pin	SVK054TFSC	SVK054TMSC
32	SVS	101 pin	SVK054TFSC	SVK054TMSC
32	SPK	25 pin	SPK025TFSC	SPK025TMSC
32	SB	32A-9 \| 32-5	SVK054TFSC	SVK054TMSC
40	SVK - SHD	85 \| 100 \| 150 pin	SVK085TFSC	SVK085TMSC
40	SB	40A-10	SVK085TFSC	SVK085TMSC

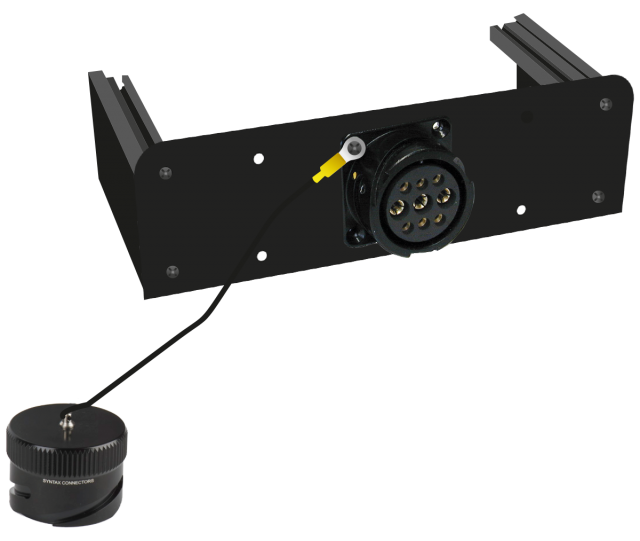

Dust cap lacing

1. Black steel lanyard (teflon coated)
2. Heat shrink tube
3. Lanyard crimp collet (for inline connectors' caps)
4. Lanyard crimp lug (for caps on panel-mount)
For positive lacing, our IP67 caps are supplied with a special high-resistance lanyard made up of seven stainless strands, coated with anti-scraping black teflon tubing. On cable connectors, the lanyard is laced to a specific housing on the connector’s backshell.
