Syntax SVK multipin bayonet connectors

Syntax® SVK

A synthesis for perfect balance.

Syntax® SVK

A synthesis for
perfect balance.

The SVK is our all-round quality signal multipin connectors series. Versatile, super reliable, great ergonomics. Available in 8 different configurations, from 13 to 150 contacts.

  • We know what you need
    for your professional connections

    We know what you need
    for your professional connections

    The multipin solutions you were looking for

    The multipin solutions you were looking for

    The Syntax® SVK series provides super-reliable military-grade connecting solutions in industrial machinery and automation, and in applications such as energy, managing of audio channels and connection of a wide range of devices. All details have been thoughtfully engineered to set a higher standard on circular multipin connectors and provide an unprecedented level of strength, durability and comfort. Its IP67 waterproof rating (when mated) makes the SVK series suitable for usage everywhere, either indoors or outdoors. On the females, the locking ring is comfortable to lock thanks to the deep knurl ridges, and has a thick-walled construction for increased durability in case of misuse or accidental blows. The roller pins ensure easy coupling with an audible click when connectors are locked. The SVK series is available in 8 different insert arrangement configurations, from 13 to 150 contacts.  Compliant with MIL-C-5015 & VG 95234 standards, RoHS.

    Syntax SVK circular multipin inline connectors
  • Technical features

    Technical features


    SVK series available versions: 13, 19,25, 37, 54, 85, 100 and 150 pins
    Compliant with MIL-C-5015 & VG 95234 military standards
    Aluminium alloy shells with abrasion resistant black electrophoresis finish
    Audible lock-up recognition system guaranteed for over 2000 mate and demate cycles
    Metal or rubber coated locking rings for easy coupling
    Bayonet lock stainless steel safety pin
    High precision gold or silver plated machined contacts for frictionless coupling and long term reliability
    Chloroprene high performance insulating rubber insert allowing easy contact insertion and removal for fast assembling or repair operations
    Standard or spiral flex cable glands ensure water tight sealing and optimal cable strain relief
    IP67 waterproof (when mated) for outdoor applications
    IP67 caps for waterproof protection even on unmated connectors

  • Inline female

    Inline female

    SVK Series

    SVK Series

  • Syntax SVK 13 pin inline female connector

    13 pin

    13 pin

    Inline female

    Inline female

    Part number: SVK013FV

  • Syntax SVK 19 pin inline female connector

    19 pin

    19 pin

    Inline female

    Inline female

    Part number: SVK019FV

  • Syntax SVK 25 pin inline female connector

    25 pin

    25 pin

    Inline female

    Inline female

    Part number: SVK025FV

  • Syntax SVK 37 pin inline female connector

    37 pin

    37 pin

    Inline female

    Inline female

    Part number: SVK037FV

  • Syntax SVK 54 pin inline female connector

    54 pin

    54 pin

    Inline female

    Inline female

    Part number: SVK054FV

  • Syntax SVK 85 pin inline female connector

    85 pin

    85 pin

    Inline female

    Inline female

    Part number: SVK085FV

  • Syntax SVK 100 pin inline female connector

    100 pin

    100 pin

    Inline female

    Inline female

    Part number: SVK100FV

  • Syntax SVK 150 pin inline female connector

    150 pin

    150 pin

    Inline female

    Inline female

    Part number: SVK150FV

  • Always identify  your connectors

    Always identify
    your connectors

    Always identify
    your connectors

    New rubber coated locking rings for extreme resistance, great grip and effective color coding

    New rubber coated locking rings for
    extreme resistance, great grip and
    effective color coding

    Extra tough for everyday work, extremely resistant to shocks and compression, smoothest insertion, best grip with or without gloves.The rubber coated version of the locking ring is now available on all the series of Syntax circular multipin connectors. For quick identification of your cables through color coding multiple color options are available in stock (examples in the photo). For special color customizations, according to RAL tables, please contact our Sales department.

  • Inline male

    Inline male

    SVK Series

    SVK Series

  • Syntax SVK 13 pin inline male connector

    13 pin

    13 pin

    Inline male

    Inline male

    Part number: SVK013MV

  • Syntax SVK 19 pin inline male connector

    19 pin

    19 pin

    Inline male

    Inline male

    Part number: SVK019MV

  • Syntax SVK 25 pin inline male connector

    25 pin

    25 pin

    Inline male

    Inline male

    Part number: SVK025MV

  • Syntax SVK 37 pin inline male connector

    37 pin

    37 pin

    Inline male

    Inline male

    Part number: SVK037MV

  • Syntax SVK 54 pin inline male connector

    54 pin

    54 pin

    Inline male

    Inline male

    Part number: SVK054MV

  • Syntax SVK 85 pin inline male connector

    85 pin

    85 pin

    Inline male

    Inline male

    Part number: SVK085MV

  • Syntax SVK 100 pin inline male connector

    100 pin

    100 pin

    Inline male

    Inline male

    Part number: SVK100MV

  • Syntax SVK 150 pin inline male connector

    150 pin

    150 pin

    Inline male

    Inline male

    Part number: SVK150MV

  • Panel female

    Panel female

    SVK Series

    SVK Series

  • Syntax SVK 13 pin panel female connector

    13 pin

    13 pin

    Panel female

    Panel female

    Part number: SVK013FP

  • Syntax SVK 19 pin panel female connector

    19 pin

    19 pin

    Panel female

    Panel female

    Part number: SVK019FP

  • Syntax SVK 25 pin panel female connector

    25 pin

    25 pin

    Panel female

    Panel female

    Part number: SVK025FP

  • Syntax SVK 37 pin panel female connector

    37 pin

    37 pin

    Panel female

    Panel female

    Part number: SVK037FP

  • Syntax SVK 54 pin panel female connector

    54 pin

    54 pin

    Panel female

    Panel female

    Part number: SVK054FP

  • Syntax SVK 85 pin panel female connector

    85 pin

    85 pin

    Panel female

    Panel female

    Part number: SVK085FP

  • Syntax SVK 100 pin panel female connector

    100 pin

    100 pin

    Panel female

    Panel female

    Part number: SVK100FP

  • Syntax SVK 150 pin panel female connector

    150 pin

    150 pin

    Panel female

    Panel female

    Part number: SVK150FP

  • Your connector  in stainless steel

    Your connector
    in stainless steel

    Your connector
    in stainless steel

    Syntax® SLS series

    Syntax® SLS series

    A new generation of connectors: the new Syntax SLS series is a high-end solution for professional connections, where high precision contactation is needed.

  • Panel male

    Panel male

    SVK Series

    SVK Series

  • Syntax SVK 13 pin panel male connector

    13 pin

    13 pin

    Panel male

    Panel male

    Part number: SVK013MP

  • Syntax SVK 19 pin panel male connector

    19 pin

    19 pin

    Panel male

    Panel male

    Part number: SVK019MP

  • Syntax SVK 25 pin panel male connector

    25 pin

    25 pin

    Panel male

    Panel male

    Part number: SVK025MP

  • Syntax SVK 37 pin panel male connector

    37 pin

    37 pin

    Panel male

    Panel male

    Part number: SVK037MP

  • Syntax SVK 54 pin panel male connector

    54 pin

    54 pin

    Panel male

    Panel male

    Part number: SVK054MP

  • Syntax SVK 85 pin panel male connector

    85 pin

    85 pin

    Panel male

    Panel male

    Part number: SVK085MP

  • Syntax SVK 100 pin panel male connector

    100 pin

    100 pin

    Panel male

    Panel male

    Part number: SVK100MP

  • Syntax SVK 150 pin panel male connector

    150 pin

    150 pin

    Panel male

    Panel male

    Part number: SVK150MP

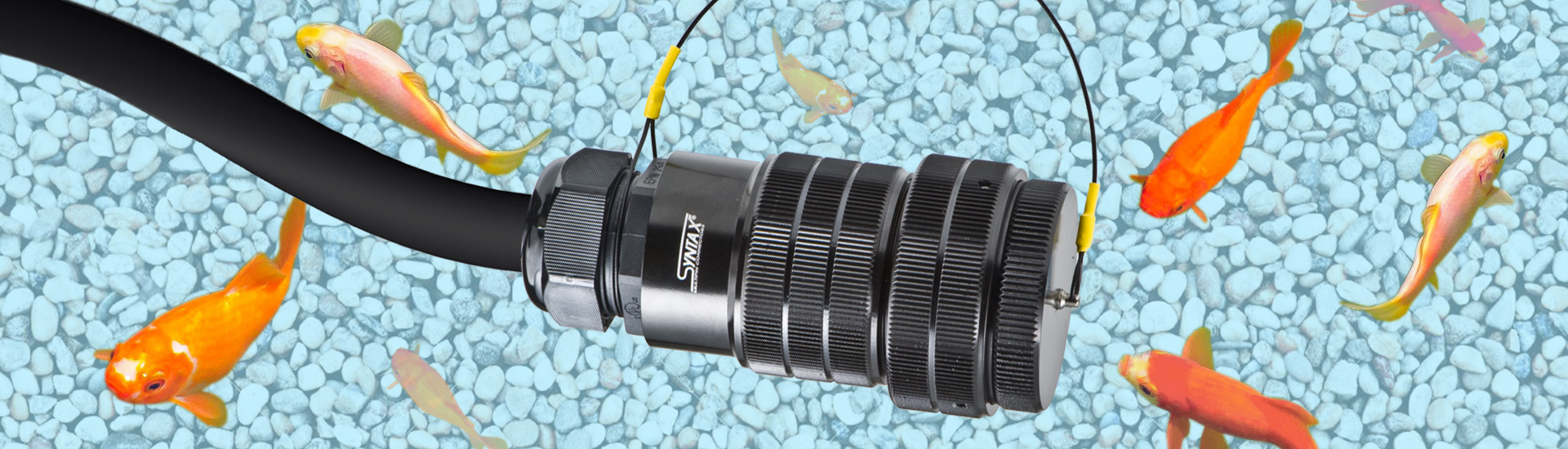

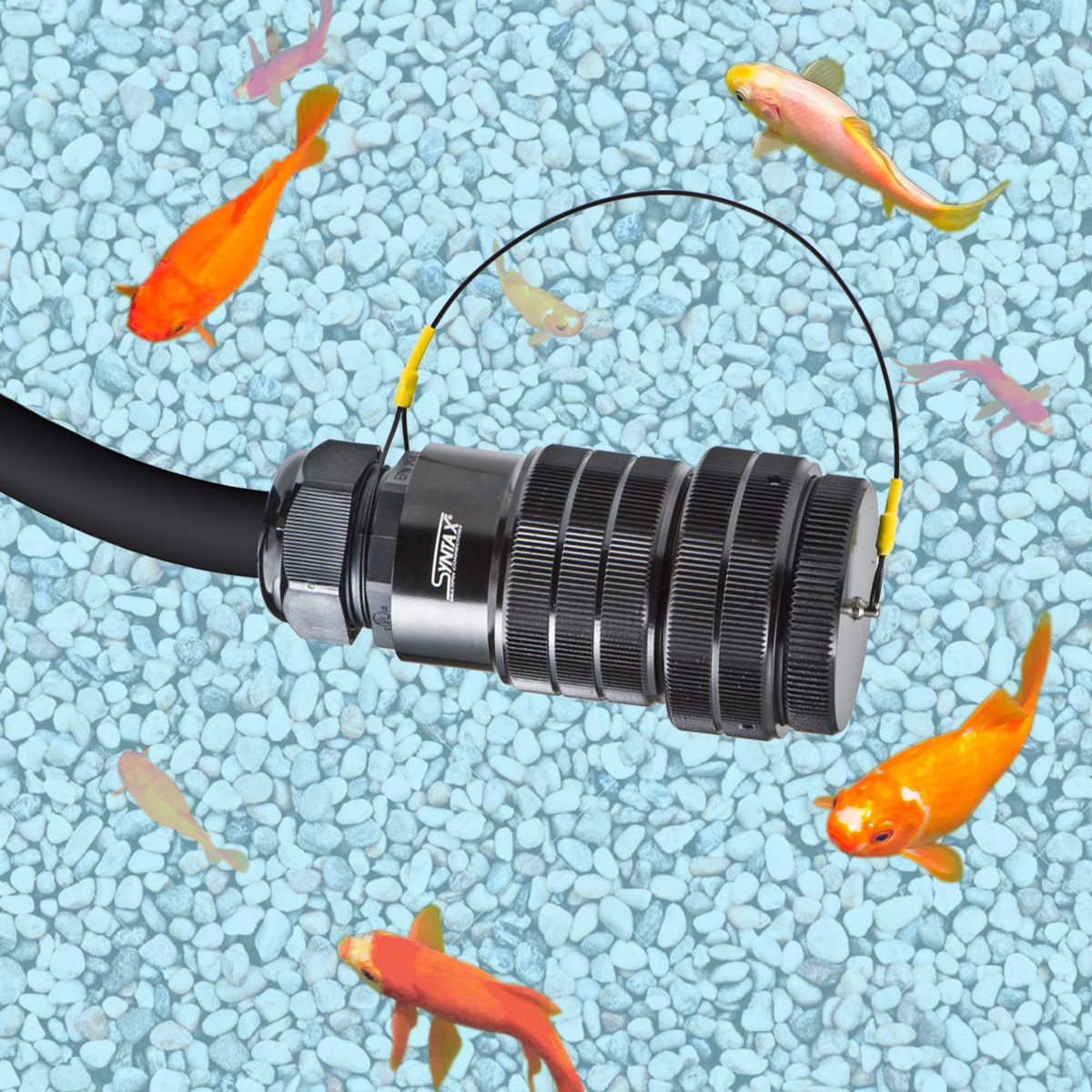

  • Waterproof your connectors Waterproof your connectors

    Waterproof your connectors

    Waterproof your connectors

    IP67 Protection caps

    IP67 Protection caps

    Environmental caps are available on request and provide complete IP67 protection on unmated connectors. The use of protective caps results in extended life span of the connectors as the mating threads are protected against damage from impacts and improved safety as contacts are protected against dust and water even when the connectors are not mated.

    For positive lacing, the IP67 caps are supplied with a special high-resistance lanyard made up of seven stainless strands, coated with anti-scraping black teflon tubing. On cable connectors, the lanyard is laced to a specific housing on the connector’s backshell.

  • The perfect match for your SVK Series

    The perfect match
    for your SVK Series

    Associated Syntax® cables

    Associated Syntax® cables

  • Analog

    Analog

    Analog

    Multipair cables

    Multipair cables

    ModelCablePart NumberModelCablePart Number
    13 Pin4 pair7YPR04SX|100 Pin32 pair7YPR32SX
    19 Pin8 pair7YPR08SX|150 Pin40 pair7YPR40SX
    25 Pin8 pair7YPR08SX|150 Pin48 pair7YPR48SX
    37 Pin12 pair7YPR12SX
    54 Pin16 pair7YPR16SX
    85 Pin24 pair7YPR24SX

  • Digital

    Digital

    Digital

    Multipair cables

    Multipair cables

    ModelCablePart Number
    13 Pin4 pair7YDPR04SX
    19 Pin8 pair7YDPR08SX
    25 Pin8 pair7YDPR08SX
    37 Pin12 pair7YDPR12SX
    54 Pin16 pair7YDPR16SX

  • SVK Shell features

    SVK Shell features

  • Firmer grip

    Firmer grip

    Firmer grip

    SVK Series

    SVK Series

    Marked knurling on the whole circumference of locking-ring for optimal grip and easy coupling. An audible click indicates that locking is complete.

  • Simpler wiring

    Simpler wiring

    Simpler wiring

    SVK Series

    SVK Series

    Extra wide backshell for easier wiring. Increased size of coupling roller pins on locking ring for more durability.

  • Extra resistance

    Extra resistance

    Extra resistance

    SVK Series

    SVK Series

    Thicker locking ring for high resistance to shocks. The aluminium housing for the neoprene insert does not protrude from the edge of the locking ring, avoiding ovalization due to accidental blows.

  • No vibrations

    No vibrations

    No vibrations

    SVK Series

    SVK Series

    Vibration-proof stainless steel safety pin ensures high reliability of the connection in every working condition.

  • No need for  strong muscles!

    No need for
    strong muscles!

    No need for
    strong muscles!

    Only the smoothest coupling
    for our connectors

    Only the smoothest coupling
    for our connectors

    Our classic heavy duty or rubber coated locking rings feature bigger coupling roller pins and provide great ergonomics for easy, smooth and effortless coupling and uncoupling of the connectors, even when wearing gloves.

  • The secret behind a high quality connection The secret behind a high quality connection

    The secret behind a high quality connection

    The secret behind
    a high quality connection

    Contacts for the SVK Series

    Contacts for the SVK Series

  • Female contacts

    Female contacts

    Silver - Gold | Crimp - Solder
    Size 16-18

    Silver - Gold | Crimp - Solder
    Size 16-18

  • Size 18

    Size 18

    Size 18

    Crimp | Gold | Armored

    Crimp | Gold | Armored

    100/150 pin versions
    Part number SVKP18GFK

  • Size 16

    Size 16

    Size 16

    Crimp | Silver | Armored

    Crimp | Silver | Armored

    13/19/25/37/54/85 pin versions
    Part number SVKP16SFK

  • Size 16

    Size 16

    Size 16

    Crimp | Gold | Armored

    Crimp | Gold | Armored

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFK

  • Size 16

    Size 16

    Size 16

    Solder | Gold | Armored

    Solder | Gold | Armored

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFZ

  • Size 16

    Size 16

    Size 16

    Crimp | Silver

    Crimp | Silver

    13/19/25/37/54/85 pin versions
    Part number SVKP16SFC

  • Size 16

    Size 16

    Size 16

    Crimp | Gold

    Crimp | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFC

  • Size 16

    Size 16

    Size 16

    Solder | Gold

    Solder | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFS

  • Male contacts

    Male contacts

    Silver - Gold | Crimp - Solder
    Size 16-18

    Silver - Gold | Crimp - Solder
    Size 16-18

  • Size 18

    Size 18

    Size 18

    Crimp | Gold

    Crimp | Gold

    100/150 pin versions
    Part number SVKP18GMC

  • Size 16

    Size 16

    Size 16

    Crimp | Silver

    Crimp | Silver

    13/19/25/37/54/85 pin versions
    Part number SVKP16SMC

  • Size 16

    Size 16

    Size 16

    Crimp | Gold

    Crimp | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GMC

  • Size 16

    Size 16

    Size 16

    Solder | Gold

    Solder | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GMS

  • Technical data

    Technical data

    for SVK Series

    for SVK Series

  • Contacts rating

    Contacts rating

    Size 16 - Size 18

    Size 16 - Size 18



    SizeMax currentRated currentMax voltage dropWire section (mm2)Wire section AWG
    1622 A13A74mV1÷1,518÷16
    187.5 A7.5 A83mV0.15÷0.626÷20


  • Connectors rating

    Connectors rating

    SVK Series

    SVK Series



    Contacts numberOperating voltage VdcOperating voltage VacTest voltage VacMin. Flashover Vac
    13/19/25/150250120010001400
    37/54/85/10070050020002800


  • Overall dimensions

    Overall dimensions

  • Inline female

    Inline female

    Inline female

    Dimensions in mm

    Dimensions in mm



    PinsShell sizeŘ B MaxL1 MaxCable clamp metricŘ Cable Min-Max
    13-192043.0103M206 - 14
    252450.4108M256 - 18
    372856.0116M327 - 25
    543263.0121M327 - 25
    85-100-1504075.0147M4015 - 32

  • Inline male

    Inline male

    Inline male

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeŘ A Max +0/-0.15Ř C MaxL2 MaxCable clamp metricŘ Cable Min-Max
    13-192040.043102M206 - 14
    252440.944109M256 - 18
    372846.750116M327 - 25
    543253.456122M327 - 25
    85-100-1504065.569147M4015 - 32

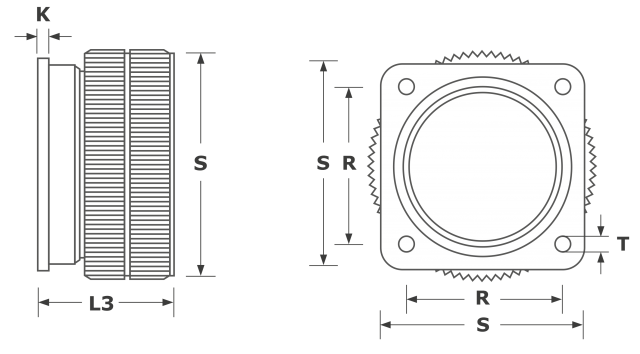

  • Panel female

    Panel female

    Panel female

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeŘ B MaxL3 MaxK ±0.2R ±0.1S ±0.3T H13
    13-192043.038.1429.438.03.2
    252450.440.6434.944.53.7
    372856.040.8439.750.83.7
    543263.043.7444.557.04.4
    85-100-150407544.8455.669.84.4

  • Panel male

    Panel male

    Panel male

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeŘ A ±0.15L ±0.3K ±0.2M +0.4/-0Ř N MaxR ±0.1S ±0.3T H13
    13-192034.234.541931.7529.438.13.2
    252440.935.7420.635.334.944.53.7
    372846.735.7420.641.439.750.83.7
    543253.437.3422.247.844.557.04.3
    85-100-1504065.537.3422.259.055.669.84.3

  • Cut-out dimensions

    Cut-out dimensions

    Panel connectors

    Panel connectors

    Dimensions in mm

    PinsAŘ BŘ C
    13-1929.431.753.1
    2534.935.33.7
    3739.741.53.7
    5444.547.94.3
    85-100-15055.559.14.3
