Syntax SHD heavy duty multipin bayonet connectors

Syntax® SHD

SHD Roadline connectors
Syntax Heavy Duty series

Syntax® SHD

SHD Roadline connectors
Syntax Heavy Duty series

The most rugged and long-lasting multipin connectors. Reliable and easy to wire, smoothest mating and unmating. A test of strength.

  • Roadline series
    born to be tough

    Roadline series
    born to be tough

    No matter how bad the weather can be, SHD is not afraid to work outdoors

    No matter how bad the weather can be,
    SHD is not afraid to work outdoors

    The Syntax® SHD Roadline series has set a new benchmark for industry standard MIL-C-5015 designs. An uncompromised solution providing super-reliable military-grade multipin connections in such diverse fields as industrial machinery and automation, energy, managing of audio channels and connections of a wide range of devices. Suitable for any indoors or outdoor applications including live events, touring and broadcasting. Syntax® SHD Roadline extreme robustness guarantees long term reliability and an increased number of mating cycles in rigorous conditions. Circular bayonet connectors compliant with MIL-C-5015 and VG 95234 standards, RoHS.

    Syntax SHD heavy duty circular bayonet multipin connectors
  • Bigger coupling roller pins and deeper knurled shells provide easy mating/unmating. Thicker machined construction prevents ovalization of the locking rings caused by unintentional blows. IP67 protective caps are available to ensure that the connectors are waterproof even when unmated. The Syntax IP67 protective caps are provided with special high-resistance lacing made up of seven stainless strands, covered by anti-scratch Teflon black tubing.

  • Inline female

    Inline female

    SHD Series

    SHD Series

  • Syntax SHD 13 pin inline female connector

    13 pin

    13 pin

    Inline female

    Inline female

    Part number: SHD013FV

  • Syntax SHD 19 pin inline female connector

    19 pin

    19 pin

    Inline female

    Inline female

    Part number: SHD019FV

  • Syntax SHD 25 pin inline female connector

    25 pin

    25 pin

    Inline female

    Inline female

    Part number: SHD025FV

  • Syntax SHD 37 pin inline female connector

    37 pin

    37 pin

    Inline female

    Inline female

    Part number: SHD037FV

  • Syntax SHD 54 pin inline female connector

    54 pin

    54 pin

    Inline female

    Inline female

    Part number: SHD054FV

  • Syntax SHD 85 pin inline female connector

    85 pin

    85 pin

    Inline female

    Inline female

    Part number: SHD085FV

  • Syntax SHD 100 pin inline female connector

    100 pin

    100 pin

    Inline female

    Inline female

    Part number: SHD100FV

  • Syntax SHD 150 pin inline female connector

    150 pin

    150 pin

    Inline female

    Inline female

    Part number: SHD150FV

  • Always identify  your connectors

    Always identify
    your connectors

    Always identify
    your connectors

    New rubber coated locking rings for extreme resistance, great grip and effective color coding

    New rubber coated locking rings for
    extreme resistance, great grip and
    effective color coding

    Extra tough for everyday work, extremely resistant to shocks and compression, smoothest insertion, best grip with or without gloves.The rubber coated version of the locking ring is now available on all the series of Syntax circular multipin connectors. For quick identification of your cables through color coding multiple color options are available in stock (examples in the photo). For special color customizations, according to RAL tables, please contact our Sales department.

  • Inline male

    Inline male

    SHD Series

    SHD Series

  • Syntax SHD 13 pin inline male connector

    13 pin

    13 pin

    Inline male

    Inline male

    Part number: SHD013MV

  • Syntax SHD 19 pin inline male connector

    19 pin

    19 pin

    Inline male

    Inline male

    Part number: SHD019MV

  • Syntax SHD 25 pin inline male connector

    25 pin

    25 pin

    Inline male

    Inline male

    Part number: SHD025MV

  • Syntax SHD 37 pin inline male connector

    37 pin

    37 pin

    Inline male

    Inline male

    Part number: SHD037MV

  • Syntax SHD 54 pin inline male connector

    54 pin

    54 pin

    Inline male

    Inline male

    Part number: SHD054MV

  • Syntax SHD 85 pin inline male connector

    85 pin

    85 pin

    Inline male

    Inline male

    Part number: SHD085MV

  • Syntax SHD 100 pin inline male connector

    100 pin

    100 pin

    Inline male

    Inline male

    Part number: SHD100MV

  • Syntax SHD 150 pin inline male connector

    150 pin

    150 pin

    Inline male

    Inline male

    Part number: SHD150MV

  • Panel female

    Panel female

    SHD Series

    SHD Series

  • Syntax SHD 13 pin panel female connector

    13 pin

    13 pin

    Panel female

    Panel female

    Part number: SHD013FP

  • Syntax SHD 19 pin panel female connector

    19 pin

    19 pin

    Panel female

    Panel female

    Part number: SHD019FP

  • Syntax SHD 25 pin panel female connector

    25 pin

    25 pin

    Panel female

    Panel female

    Part number: SHD025FP

  • Syntax SHD 37 pin panel female connector

    37 pin

    37 pin

    Panel female

    Panel female

    Part number: SHD037FP

  • Syntax SHD 54 pin panel female connector

    54 pin

    54 pin

    Panel female

    Panel female

    Part number: SHD054FP

  • Syntax SHD 85 pin panel female connector

    85 pin

    85 pin

    Panel female

    Panel female

    Part number: SHD085FP

  • Syntax SHD 100 pin panel female connector

    100 pin

    100 pin

    Panel female

    Panel female

    Part number: SHD100FP

  • Syntax SHD 150 pin panel female connector

    150 pin

    150 pin

    Panel female

    Panel female

    Part number: SHD150FP

  • Your connector  in stainless steel

    Your connector
    in stainless steel

    Your connector
    in stainless steel

    Syntax® SLS series

    Syntax® SLS series

    A new generation of connectors: the new Syntax SLS series is a high-end solution for professional connections, where high precision contactation is needed.

  • Panel male

    Panel male

    SHD - SVK Series

    SHD - SVK Series

    SHD and SVK Series share the same panel male connectors.

  • Syntax SHD 13 pin panel male connector

    13 pin

    13 pin

    Panel male

    Panel male

    Part number: SVK013MP

  • Syntax SHD 19 pin panel male connector

    19 pin

    19 pin

    Panel male

    Panel male

    Part number: SVK019MP

  • Syntax SHD 25 pin panel male connector

    25 pin

    25 pin

    Panel male

    Panel male

    Part number: SVK025MP

  • Syntax SHD 37 pin panel male connector

    37 pin

    37 pin

    Panel male

    Panel male

    Part number: SVK037MP

  • Syntax SHD 54 pin panel male connector

    54 pin

    54 pin

    Panel male

    Panel male

    Part number: SVK054MP

  • Syntax SHD 85 pin panel male connector

    85 pin

    85 pin

    Panel male

    Panel male

    Part number: SVK085MP

  • Syntax SHD 100 pin panel male connector

    100 pin

    100 pin

    Panel male

    Panel male

    Part number: SVK100MP

  • Syntax SHD 150 pin panel male connector

    150 pin

    150 pin

    Panel male

    Panel male

    Part number: SVK150MP

  • Waterproof your connectors Waterproof your connectors

    Waterproof your connectors

    Waterproof your connectors

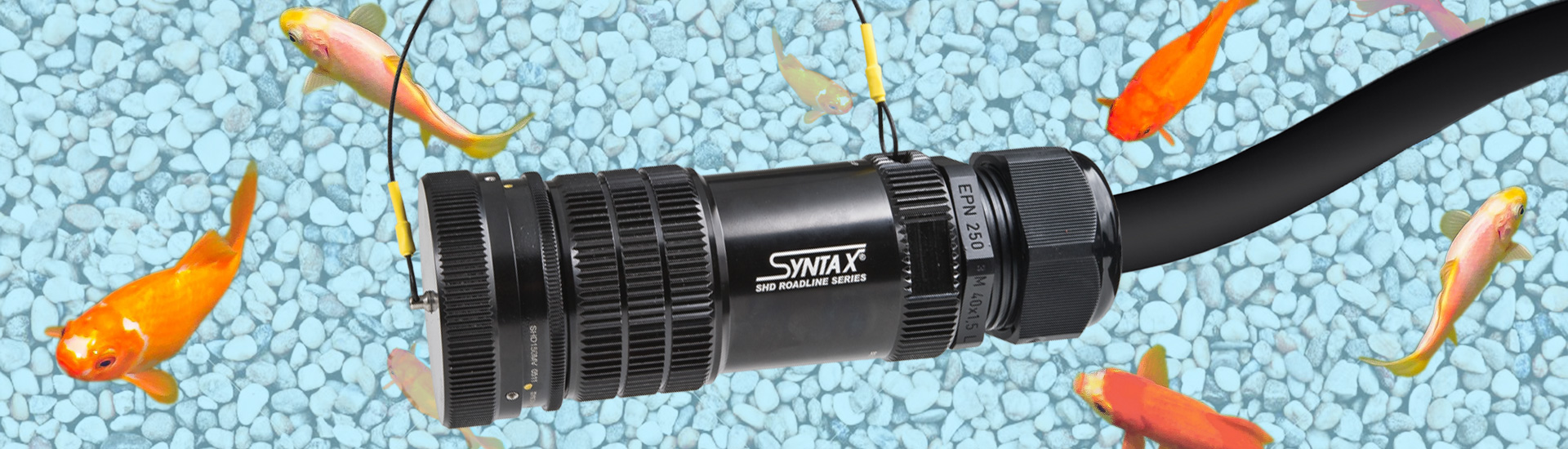

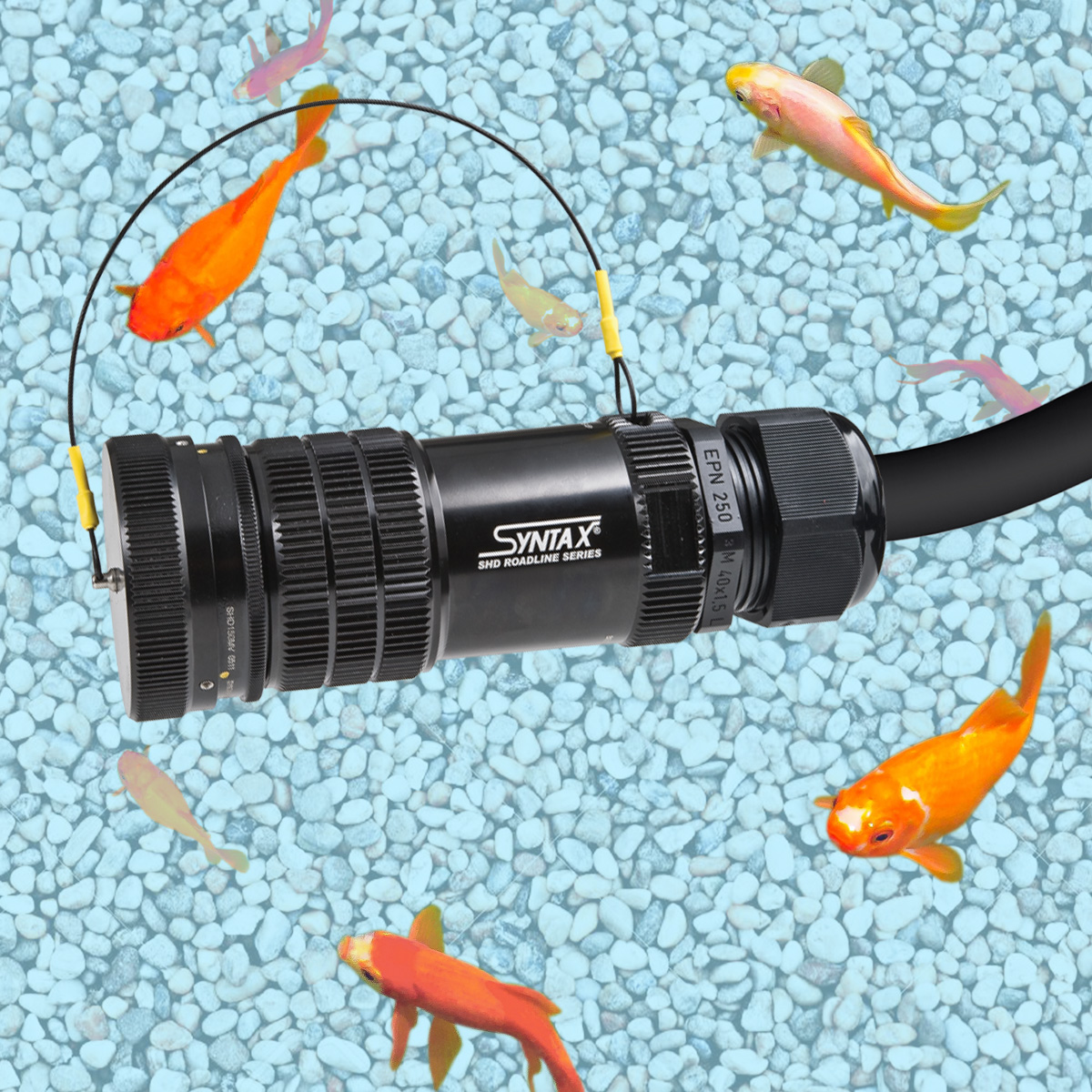

    IP67 Protection caps

    IP67 Protection caps

    Environmental caps are available on request and provide complete IP67 protection on unmated connectors. The use of protective caps results in extended life span of the connectors as the mating threads are protected against damage from impacts and improved safety as contacts are protected against dust and water even when the connectors are not mated.

    For positive lacing, the IP67 caps are supplied with a special high-resistance lanyard made up of seven stainless strands, coated with anti-scraping black teflon tubing. On cable connectors, the lanyard is laced to a specific housing on the connector’s backshell.

  • The perfect match for your SHD Series

    The perfect match
    for your SHD Series

    Associated Syntax® cables

    Associated Syntax® cables

  • Analog

    Analog

    Analog

    Multipair cables

    Multipair cables

    ModelCablePart NumberModelCablePart Number
    13 Pin4 pair7YPR04SX|100 Pin32 pair7YPR32SX
    19 Pin8 pair7YPR08SX|150 Pin40 pair7YPR40SX
    25 Pin8 pair7YPR08SX|150 Pin48 pair7YPR48SX
    37 Pin12 pair7YPR12SX
    54 Pin16 pair7YPR16SX
    85 Pin24 pair7YPR24SX

  • Digital

    Digital

    Digital

    Multipair cables

    Multipair cables

    ModelCablePart Number
    13 Pin4 pair7YDPR04SX
    19 Pin8 pair7YDPR08SX
    25 Pin8 pair7YDPR08SX
    37 Pin12 pair7YDPR12SX
    54 Pin16 pair7YDPR16SX

  • SHD Shell features

    SHD Shell features

  • Firmer grip

    Firmer grip

    Firmer grip

    SHD Roadline

    SHD Roadline

    Marked knurling on the whole circumference of locking-ring for optimal grip, thus allowing very easy coupling.

  • Simpler wiring

    Simpler wiring

    Simpler wiring

    SHD Roadline

    SHD Roadline

    Extrawide backshell to allow easier wiring operations.

  • Extra resistance

    Extra resistance

    Extra resistance

    SHD Roadline

    SHD Roadline

    Increased thickness of the locking-ring ensures greater resistance to all types of shock. The aluminium housing for the neoprene insert does not protrude from the edge of the locking ring, avoiding ovalization caused by accidental blows. The rolling pins inserted in the locking ring present enlarged swivel that ensures at least 2000 coupling/ uncoupling-cycles.

  • Double backshell tightening

    Double backshell tightening

    Double backshell tightening

    SHD Roadline

    SHD Roadline

    Once wiring is carried out, both circular knurling and machined housings for customized wrench jaws on the backshell’s edge contribute to easier locking. Tightening tools:
    SVKT - KSW customized wrench (on machined housings)
    SVKT - KSTRAP strap wrench (on knurling)

  • No need for  strong muscles!

    No need for
    strong muscles!

    No need for
    strong muscles!

    Only the smoothest coupling
    for our connectors

    Only the smoothest coupling
    for our connectors

    Our classic heavy duty or rubber coated locking rings feature bigger coupling roller pins and provide great ergonomics for easy, smooth and effortless coupling and uncoupling of the connectors, even when wearing gloves.

  • The secret behind a high quality connection The secret behind a high quality connection

    The secret behind a high quality connection

    The secret behind
    a high quality connection

    Contacts for the SHD Series

    Contacts for the SHD Series

  • Female contacts

    Female contacts

    Silver - Gold | Crimp - Solder
    Size 16-18

    Silver - Gold | Crimp - Solder
    Size 16-18

  • Size 16

    Size 16

    Size 16

    Crimp | Silver | Armored

    Crimp | Silver | Armored

    13/19/25/37/54/85 pin versions
    Part number SVKP16SFK

  • Size 16

    Size 16

    Size 16

    Crimp | Gold | Armored

    Crimp | Gold | Armored

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFK

  • Size 16

    Size 16

    Size 16

    Solder | Gold | Armored

    Solder | Gold | Armored

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFZ

  • Size 18

    Size 18

    Size 18

    Crimp | Gold | Armored

    Crimp | Gold | Armored

    100/150 pin versions
    Part number SVKP18GFK

  • Size 16

    Size 16

    Size 16

    Crimp | Silver

    Crimp | Silver

    13/19/25/37/54/85 pin versions
    Part number SVKP16SFC

  • Size 16

    Size 16

    Size 16

    Crimp | Gold

    Crimp | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFC

  • Size 16

    Size 16

    Size 16

    Solder | Gold

    Solder | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GFS

  • Male contacts

    Male contacts

    Silver - Gold | Crimp - Solder
    Size 16 -18

    Silver - Gold | Crimp - Solder
    Size 16 -18

  • Size 16

    Size 16

    Size 16

    Crimp | Silver

    Crimp | Silver

    13/19/25/37/54/85 pin versions
    Part number SVKP16SMC

  • Size 16

    Size 16

    Size 16

    Crimp | Gold

    Crimp | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GMC

  • Size 16

    Size 16

    Size 16

    Solder | Gold

    Solder | Gold

    13/19/25/37/54/85 pin versions
    Part number SVKP16GMS

  • Size 18

    Size 18

    Size 18

    Crimp | Gold

    Crimp | Gold

    100/150 pin versions
    Part number SVKP18GMC

  • Technical data

    Technical data

    for SHD Series

    for SHD Series

  • Contacts rating

    Contacts rating

    Size 16 - Size 18

    Size 16 - Size 18



    SizeMax currentRated currentMax voltage dropWire section (mm2)Wire section AWG
    1622 A13A74mV1÷1,518÷16
    187.5 A7.5 A83mV0.15÷0.626÷20


  • Connectors rating

    Connectors rating

    SHD Series

    SHD Series



    Contacts numberOperating voltage VdcOperating voltage VacTest voltage VacMin. Flashover Vac
    13/19/25/150250120010001400
    37/54/85/10070050020002800


  • Overall dimensions

    Overall dimensions

  • Inline female

    Inline female

    Inline female

    Dimensions in mm

    Dimensions in mm



    PinsShell sizeØ B MaxL1 MaxCable clamp metricØ Cable Min-Max
    13-192043.0153M206 - 14
    252450.4153M256 - 18
    372856.0158M327 - 25
    543263.0163M327 - 25
    85-100-1504075.0186M4015 - 32

  • Inline male

    Inline male

    Inline male

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeØ A Max +0/-0.15Ø C MaxL2 MaxCable clamp metricØ Cable Min-Max
    13-192040.043142M206 - 14
    252440.944154M256 - 18
    372846.750158M327 - 25
    543253.456164M327 - 25
    85-100-1504065.569166M4015 - 32

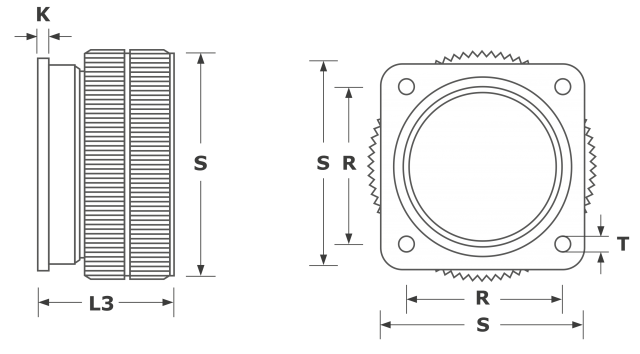

  • Panel female

    Panel female

    Panel female

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeØ B MaxL3 MaxK ±0.2R ±0.1S ±0.3T H13
    13-192043.038.1429.438.03.2
    252450.440.6434.944.53.7
    372856.040.8439.750.83.7
    543263.043.7444.4557.04.4
    85-100-150407544.8455.669.84.4

  • Panel male

    Panel male

    Panel male

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeØ A ±0.15L ±0.3K ±0.2M +0.4/-0Ø N MaxR ±0.1S ±0.3T H13
    13-192034.234.541931.7529.438.13.2
    252440.935.7420.635.334.944.53.7
    372846.735.7420.641.439.750.83.7
    543253.437.3422.247.844.557.04.3
    85-100-1504065.537.3422.259.055.669.84.3

  • Cut-ot dimensions

    Cut-ot dimensions

    Panel connectors

    Panel connectors

    Dimensions in mm

    PinsAØ BØ C
    13-1929.431.753.1
    2534.935.33.7
    3739.741.53.7
    5444.547.94.3
    85-100-15055.559.14.3
