Tools for crimping, insertion & removal of contacts and tightening tools
for Syntax® Bayonet multipin connectors series.
-
Manual crimping tool
Manual crimping tool

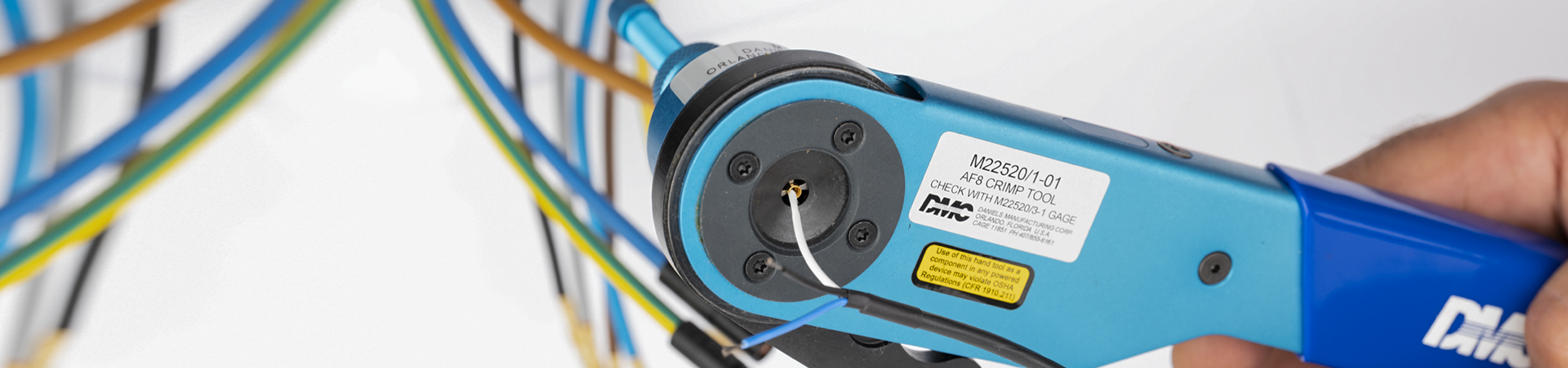

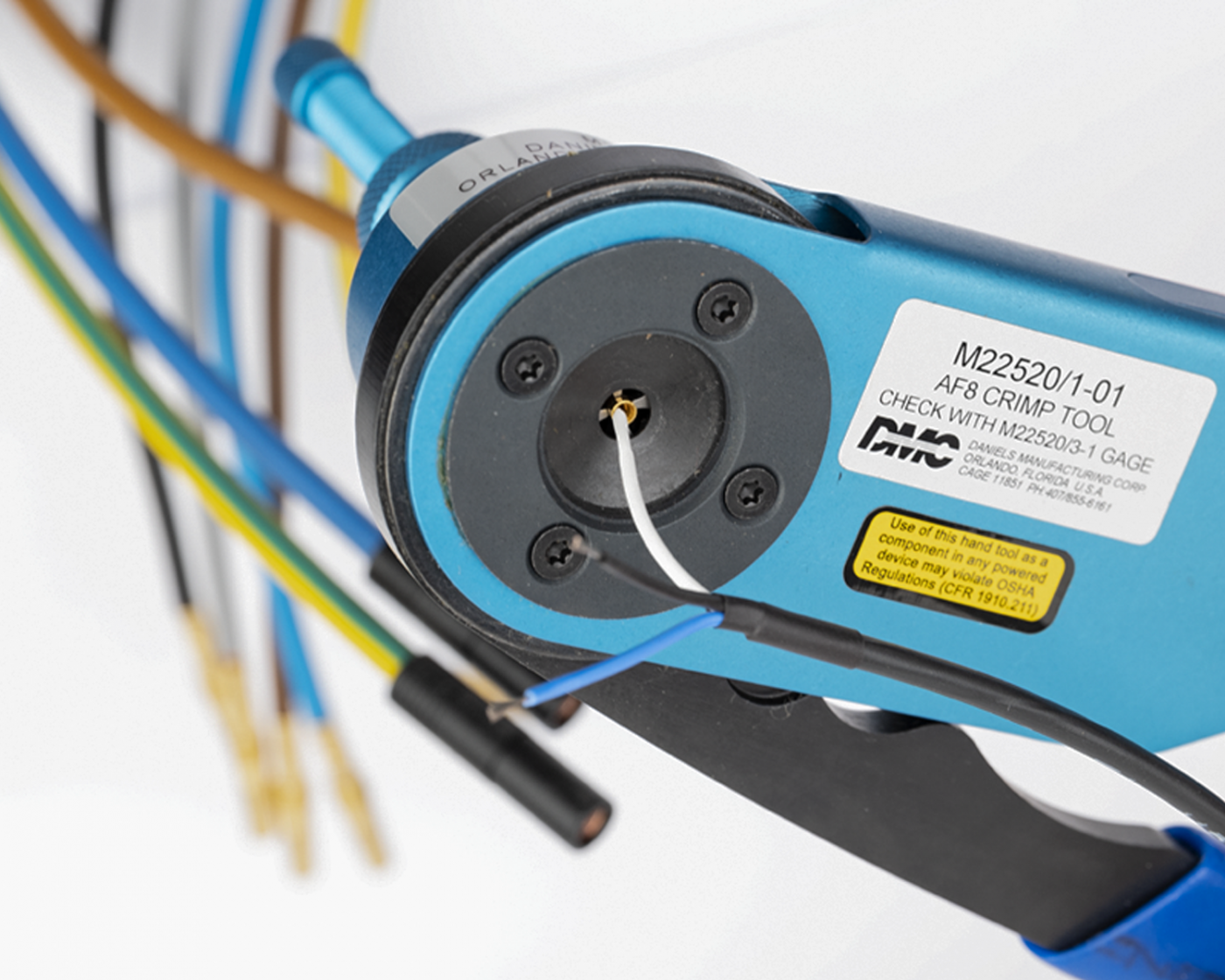

The manual crimping tool AF8 is compliant with MIL-DTL-22520/1 and AS22520/1. It is suitable for all wire gages from 12 to 26 AWG. The 8-point crimping of the AF8 tool ensures maximum strength and resistance on the crimped connection. Special indent configurations and gaging are available on request. For proper operation, the tool must be used with a military standard turret positioner. The turret is easily fitted on the crimping tool by orienting the head in the keyed position, and by tightening the hex socket screws supplied with the turret. The precision ratchet controls cycling of the tool in both directions of handle movement. This ensure the same accurate crimp every time. Positive crimp depth is controlled by an 8 position selector knob conveniently located on the tool frame. The operator will just need to select the setting for the wire being used. The setting can be secured by use of a locking pin or safety wire. Periodic gaging is recommended to ensure accurate calibration. Other than keeping the unit clean and properly stored when not in service, no operator maintenance is required.
-
Manual crimping tool
Manual crimping tool
Part No. SVKTCRIMP
-
Turret positioner
Turret positioner
Part No. SVKTOR
-
-
Pneumatic crimp tool
Pneumatic crimp tool
For 12-16-18-20 contact size
For 12-16-18-20 contact size
Our pneumatic crimping tools are well known for their unequaled reputation for trouble-free, cost saving and adaptability both in military and industrial programs. Whether upper, middle or lower range, the power tools fulfill the same precise crimping requirements as the manual versions. No additional operator training is necessary.The compact size and light weight of these tools allows them to be used easily as hand tools, as well as high production bench tools. The hand trigger is designed for equal ease of use by right or left handed operators. Bench mounted, the optional foot valve allows hands-free operation. The bench mount allows the tool to be secured at virtually any angle at the operator's will. The foot valve, when installed in-line with an air supply, makes a portable system which is adaptable to any work bench. Air supply requirements are 5.5 to 8.0 atmospheres clean dry air. The system uses standard air fitting readily available in stores.
-
Pneumatic crimp
Pneumatic crimp
Part Number SVKTCRIMP-A
-
Foot valve
Foot valve
Part Number SVKTCRIMP-B
-
Adjustable bench mount
Adjustable bench mount
Part Number SVKTCRIMP-C
-
Hydraulic crimping tool 45kN
Hydraulic crimping tool 45kN
For contacts size 4 and size 8
For contacts size 4 and size 8
Lightweight and compact, this tool is ideal to crimp connectors on overhead lines and general electric applications. Thanks to spring loaded handles, you can use the tool and crimp contacts with just one hand, with the other hand free to position the connector. For easier operations, the tool head can be rotated by 180 degrees. The built-in safety valve will bypass the oil supply when the maximum pressure is reached. The pressure release system can be easily operated at any stage of the compression.
Part No. SBH-CRIMP-A -
Crimping accessories
Crimping accessories
for Hydraulic crimping tool
for Hydraulic crimping tool
SBH ME1 for cable 4 to 6 mm2 SBH ME2 for cable 10 mm2 SBH ME3 for cable 16 mm2 SBH ME5 for cable 25 mm2
-
Tightening tools
Tightening tools
Once wiring is carried out, the connector can be easily locked with our customized wrench or the strap wrench, which provides best grip on circular knurling.
-
Customized wrench
Customized wrench
Part No. SVKT - KSW
-
Strap wrench
Strap wrench
Part No. SVKT - KSTRAP
-
-

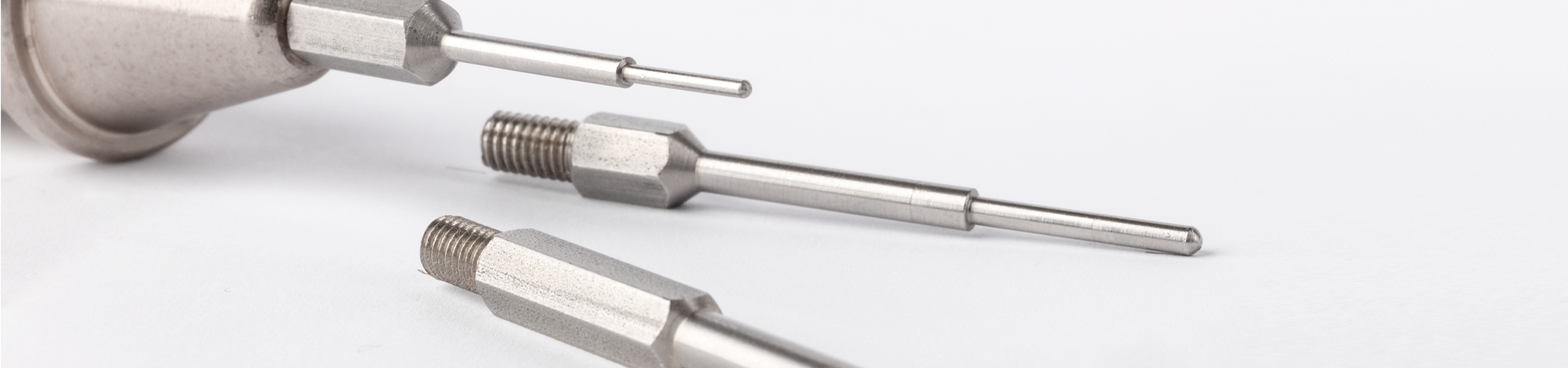

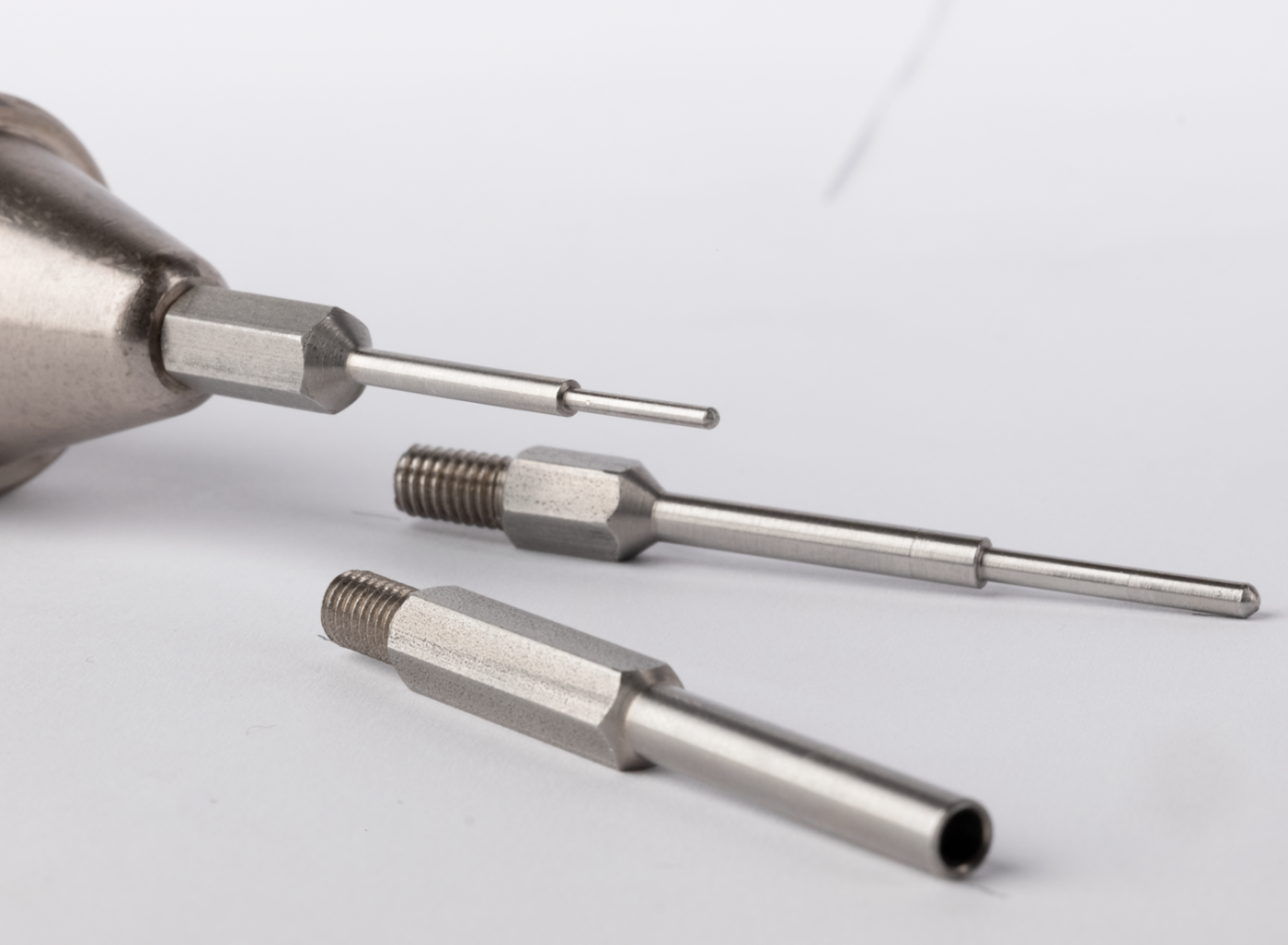

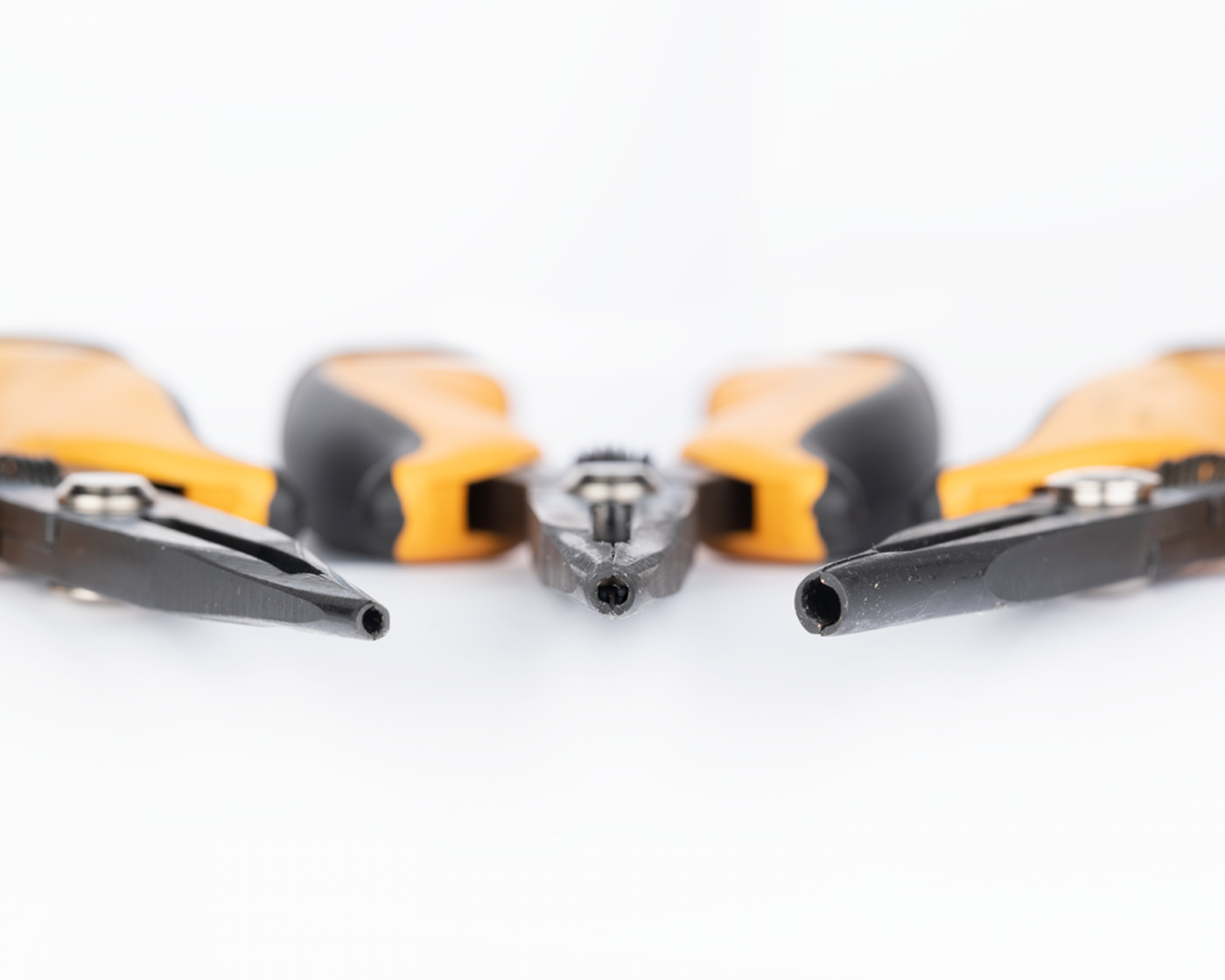

Insertion tools
Insertion tools
Insertion tools for male and female contacts (using guide pins is recommended for female contacts).
-
Part No. SVKTINS12
-
Part No. SVKTINS16
-
Part No. SVKTINS18/20
-
Guide pins
Guide pins
for female contacts
for female contacts
Guide pins are used to insert female contacts only. Remove the guide pin from the inserted contact and use it for the next contact.
Part No. SVKT20GP | SVKT18GP | SVKT16GP | SVKT12GP | SVKT59GP -
Removal tool
Removal tool
Only use the recommended removal tool to remove a contact or adjust its position in the cavity.
-
Part No. SVKTESTR11
-
Part No. SVKTESTR12
-
Part No. SVKTESTR16
-
