Syntax SVS slim high density multipin connectors

Syntax® SVS

Slim High Density connectors

Syntax® SVS

Slim High Density connectors

Professional circular signal multipin connectors series. Space-saving, easy to handle, super practical. And, of course, reliable. Available in 72 and 101 pin versions.

  • So many contacts
    in so little space

    So many contacts
    in so little space

    When you need a compact connector for your signals

    When you need a compact connector
    for your signals

    The Syntax® SVS Slim High Density series connectors have been conceived and manufactured to set a higher standard for indoor as well for outdoor applications, thanks to their IP67 waterproof rating. SVS circular bayonet multipin connectors are compliant with MIL-C-5015 and VG95234 military standards. The new version of the series has been enhanced to achieve a higher level of strength and durability, thanks to a thicker backshell and locking ring. The locking ring is designed to prevent possible ovalization of the insert due to accidental blows, and also presents deeper knurling for the maximum ease of coupling and coupling roller pins.

    Syntax SVS slim circular multipin connectors
  • Technical features

    Technical features


    SVS Slim high density series available versions: 72 and 101 pins
    Compliant with MIL-C-5015 & VG 95234 military standards
    Aluminium alloy shells with abrasion resistant black electrophoresis finish
    Audible lock-up recognition system guaranteed for over 2000 mate and demate cycles
    Metal or rubber coated locking rings for easy coupling
    Bayonet lock stainless steel safety pin
    High precision gold or silver plated machined contacts for frictionless coupling and long term reliability
    Chloroprene high performance insulating rubber insert allowing easy contact insertion and removal for fast assembling or repair operations
    Standard or spiral flex cable glands ensure water tight sealing and optimal cable strain relief
    IP67 waterproof (when mated) for outdoor applications
    IP67 caps for waterproof protection even on unmated connectors

  • Inline female and male

    Inline female and male

    SVS Series

    SVS Series

  • Syntax SVS 72 pin inline female connector

    72 pin

    72 pin

    Inline female

    Inline female

    Part number: SVS072FV

  • Syntax SVS 101 pin inline female connector

    101 pin

    101 pin

    Inline female

    Inline female

    Part number: SVS101FV

  • Syntax SVS 72 pin inline male connector

    72 pin

    72 pin

    Inline male

    Inline male

    Part number: SVS072MV

  • Syntax SVS 101 pin inline male connector

    101 pin

    101 pin

    Inline male

    Inline male

    Part number: SVS101MV

  • Always identify  your connectors

    Always identify
    your connectors

    Always identify
    your connectors

    New rubber coated locking rings for extreme resistance, great grip and effective color coding

    New rubber coated locking rings for
    extreme resistance, great grip and
    effective color coding

    Extra tough for everyday work, extremely resistant to shocks and compression, smoothest insertion, best grip with or without gloves.The rubber coated version of the locking ring is now available on all the series of Syntax circular multipin connectors. For quick identification of your cables through color coding multiple color options are available in stock (examples in the photo). For special color customizations, according to RAL tables, please contact our Sales department.

  • Panel female and male

    Panel female and male

    SVS Series

    SVS Series

  • Syntax SVS 72 pin panel female connector

    72 pin

    72 pin

    Panel female

    Panel female

    Part number: SVS072FP

  • Syntax SVS 101 pin panel female connector

    101 pin

    101 pin

    Panel female

    Panel female

    Part number: SVS101FP

  • Syntax SVS 72 pin panel male connector

    72 pin

    72 pin

    Panel male

    Panel male

    Part number: SVS072MP

  • Syntax SVS 101 pin panel male connector

    101 pin

    101 pin

    Panel male

    Panel male

    Part number: SVS101MP

  • Waterproof your connectors Waterproof your connectors

    Waterproof your connectors

    Waterproof your connectors

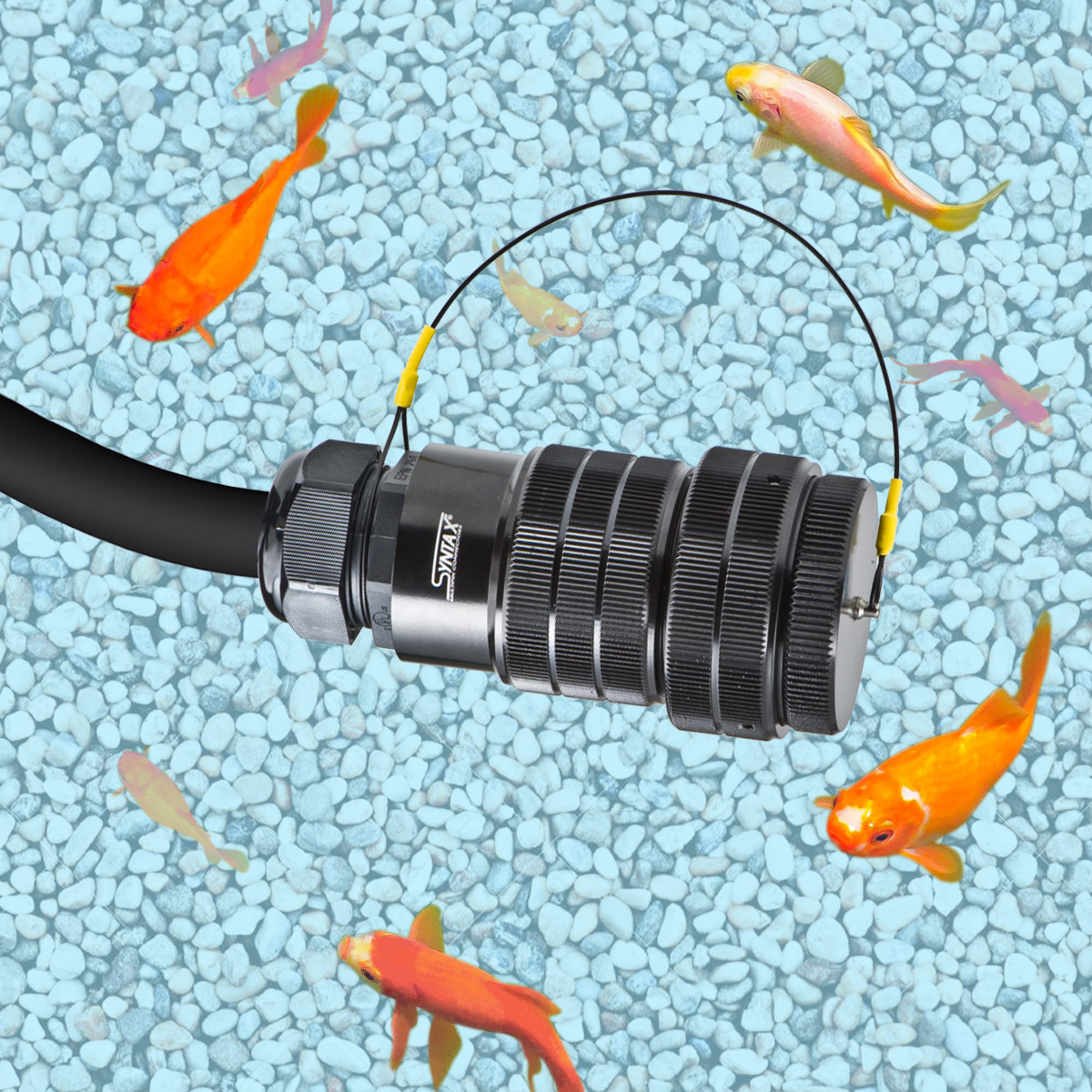

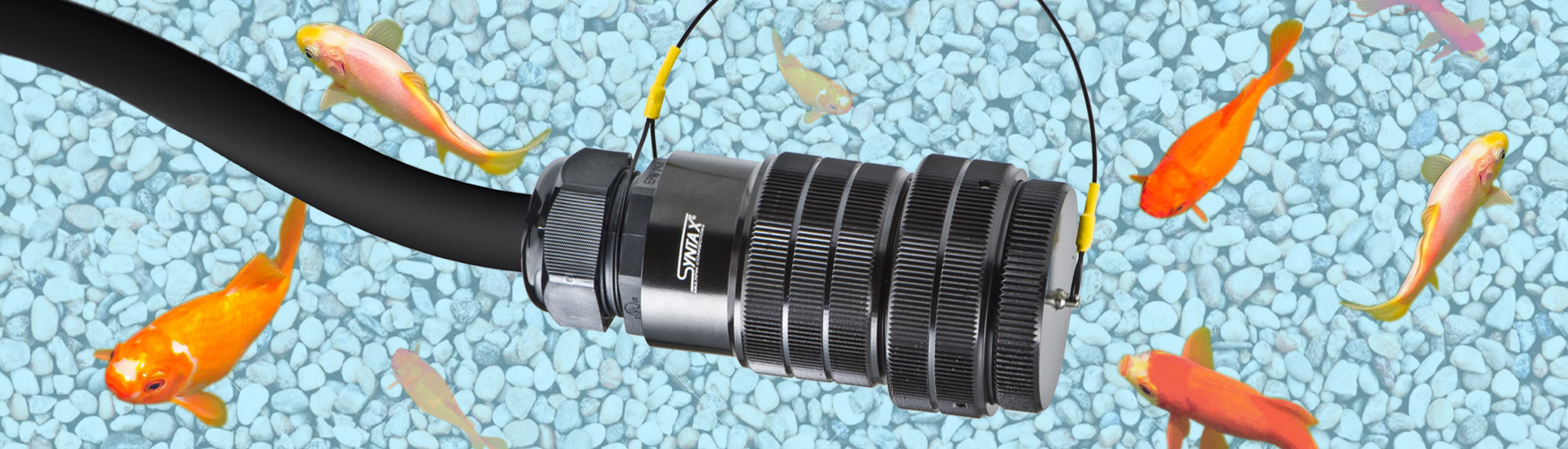

    IP67 Protection caps

    IP67 Protection caps

    Environmental caps are available on request and provide complete IP67 protection on unmated connectors. The use of protective caps results in extended life span of the connectors as the mating threads are protected against damage from impacts and improved safety as contacts are protected against dust and water even when the connectors are not mated.

    For positive lacing, the IP67 caps are supplied with a special high-resistance lanyard made up of seven stainless strands, coated with anti-scraping black teflon tubing. On cable connectors, the lanyard is laced to a specific housing on the connector’s backshell.

  • Your connector in stainless steel

    Your connector in stainless steel

    Your connector in stainless steel

    Syntax® SLS series

    Syntax® SLS series

    A new generation of connectors: the new Syntax SLS series is a high-end solution for professional connections, where high precision contactation is needed.

  • The perfect match
    for your SVS Series

    The perfect match
    for your SVS Series

    Associated Syntax® cables

    Associated Syntax® cables

  • Analog

    Analog

    Analog

    Multipair cables

    Multipair cables

    ModelCablePart No.
    72 Pin24 pair7YPR24SX
    101 Pin32 pair7YPR32SX

  • SVS Shell features

    SVS Shell features

  • Firmer grip

    Firmer grip

    Firmer grip

    SVS Series

    SVS Series

    Marked knurling on the whole circumference of locking-ring for optimal grip and easy coupling. An audible click indicates that locking is complete

  • Simpler wiring

    Simpler wiring

    Simpler wiring

    SVS Series

    SVS Series

    Extra wide backshell for easier wiring.Increased size of coupling roller pins on locking-ring for more durability.

  • Extra resistance

    Extra resistance

    Extra resistance

    SVS Series

    SVS Series

    Thicker locking-ring for high resistance to shocks. The aluminium housing for the neoprene insert does not protrude from the edge of the locking-ring, avoiding ovalization due to accidental blows.

  • No vibrations

    No vibrations

    No vibrations

    SVS Series

    SVS Series

    Vibration-proof stainless steel safety pin ensures high reliability of the connection in every working condition.

  • The secret behind a high quality connection The secret behind a high quality connection

    The secret behind a high quality connection

    The secret behind
    a high quality connection

    Contacts for the SVS Series

    Contacts for the SVS Series

  • Size 20 Armored female

    Size 20 Armored female

    Crimp | Gold

    Crimp | Gold

    Size 20 Armored female

    For SVS Series
    72/101 pin versions
    Part number SVKP20GFC

  • Size 20 Male

    Size 20 Male

    Crimp | Gold

    Crimp | Gold

    Size 20 Male

    For SVS Series
    72/101 pin versions
    Part number SVKP20GMC

  • Technical data

    Technical data

    for SVS Series

    for SVS Series

  • Contacts rating

    Contacts rating

    Size 20

    Size 20



    SizeMax currentRated currentMax voltage dropWire section (mm2)Wire section AWG
    2010 A7.5 A83mV0.15÷0.326÷22


  • Connectors rating

    Connectors rating

    SVS Series

    SVS Series



    Contacts numberOperating voltage VdcOperating voltage VacTest voltage VacMin. Flashover Vac
    72/101250120010001400


  • Overall dimensions

    Overall dimensions

  • Inline female

    Inline female

    Inline female

    Dimensions in mm

    Dimensions in mm



    PinsShell sizeŘ B MaxL1 MaxCable clamp metricŘ Cable Min-Max
    722856.0116M327 - 25
    1013263.0121M327 - 25

  • Inline male

    Inline male

    Inline male

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeŘ A Max +0/-0.15Ř C MaxL2 MaxCable clamp metricŘ Cable Min-Max
    722846.750116M327 - 25
    1013253.456122M327 - 25

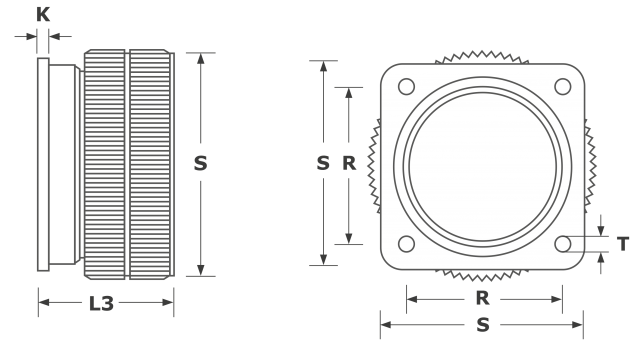

  • Panel female

    Panel female

    Panel female

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeŘ B MaxL3 MaxK ±0.2R ±0.1S ±0.3T H13
    722856.040.8439.750.83.7
    1013263.043.7444.4557.04.4

  • Panel male

    Panel male

    Panel male

    Dimensions in mm

    Dimensions in mm

    PinsShell sizeŘ A ±0.15L ±0.3K ±0.2M +0.4/-0Ř N MaxR ±0.1S ±0.3T H13
    722846.735.7420.641.439.750.83.7
    1013253.437.3422.247.844.557.04.3

  • Cut-ot dimensions

    Cut-ot dimensions

    Panel connectors

    Panel connectors

    Dimensions in mm

    PinsAŘ BŘ C
    7239.741.53.7
    10144.547.94.3
