Cable glands

Syntax«
Cable Glands

For Bayonet multipin series

Syntax«
Cable Glands

For Bayonet
multipin series

Plastic metric cable glands, standard
or spiral flex, metal cable glands.

  • Metric cable gland

    Metric cable gland

    Our metric cable glands are designed for a perfect grip and effortless spanner tight seal. Provided with Neoprene Seal for a perfect IP68 - 5 bar watertight sealing; Blade System for optimal strain relief and cable protection combined with a generous clamping range; multiple threads for secure and rapid assembly. The cable clamping system has been designed not to come loose in case of cord vibration or torsion. Cable gland types and clamping ranges vary according to connector size.

    Metric cable gland
  • Available models

    Available models

    for plastic metric cable gland

    for plastic metric cable gland


    CodeThread sizeModel typeLength of threadClamping rangeSpanner sizePart N.
    MEM 16 x 1.5Normal8.04.5 - 10.0SW 197ZM16N
    MHM 20 x 1.5Normal15.06.0 - 12.0SW 247ZM20LN
    MIM 20 x 1.5Oversize15.010.0 - 14.0SW 277ZM20EL
    MJM 25 x 1.5Reduced15.06.0 - 13.0SW 307ZM25LRN
    MLM 25 x 1.5Oversize15.013.0 - 18.0SW 337ZM25EL
    MNM 32 x 1.5Reduced15.07.0 - 15.0SW 367ZM32LRN
    MMM 32 x 1.5Normal15.011.0 - 21.0SW 367ZM32LN
    MOM 32 x 1.5Oversize15.018.0 - 25.0SW 427ZM32EL
    MQM 40 x 1.5Reduced18.015.0 - 23.0SW 467ZM40LRN
    MPM 40 x 1.5Normal18.019.0 - 28.0SW 467ZM40LN
    MRM 40 x 1.5Oversize18.022.0 - 32.0SW 537ZM40EL
    MTM 50 x 1.5Normal18.027.0 - 35.0SW 557ZM50LN
    MUM 50 x 1.5Oversize18.030.0 - 38.0SW 607ZM50EL
    MWM 63 x 1.5Normal18.034.0 - 45.0SW 667ZM63LN

  • Cable clamp - Metric

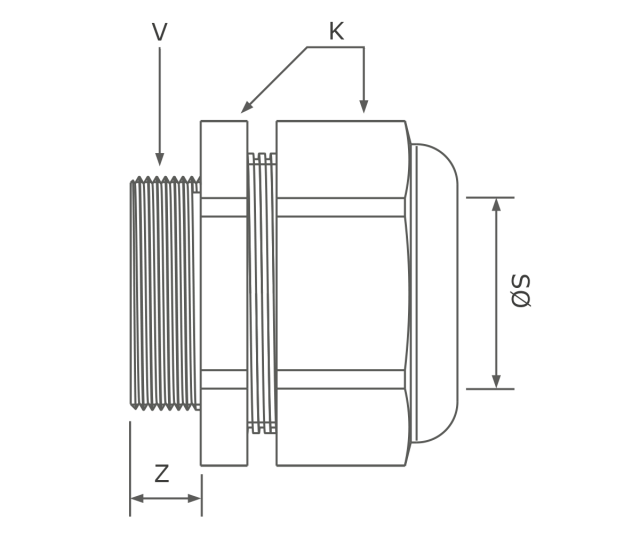

    Cable clamp - Metric

    Cable clamp - Metric

    (dimensions in mm)

    (dimensions in mm)


    V (thread size)ě S (clamping range)KZL
    M 20 x 1.56 - 1225937
    M 20 x 1.57 - 1325937
    M 20 x 1.510 - 1425937
    M 25 x 1.58 - 13301040
    M 25 x 1.59 - 17301040
    M 25 x 1.513 - 18301040
    M 32 x 1.57 - 15361047
    M 32 x 1.511 - 21361047
    M 32 x 1.518 - 25361047
    M 40 x 1.515 - 23461052
    M 40 x 1.519 - 28461052
    M 40 x 1.522 - 32461052
    M 50 GrommetSpider 27 - 35551262

  • Plastic spiral gland
    with metric thread

    Plastic spiral gland
    with metric thread

    The spiral gland prevents the cable from damage caused by bending at the connector-cable interface. Therefore, it is commonly used with audio cable, where small signal conductors can be easily damaged.

    Plastic spiral gland with metric thread

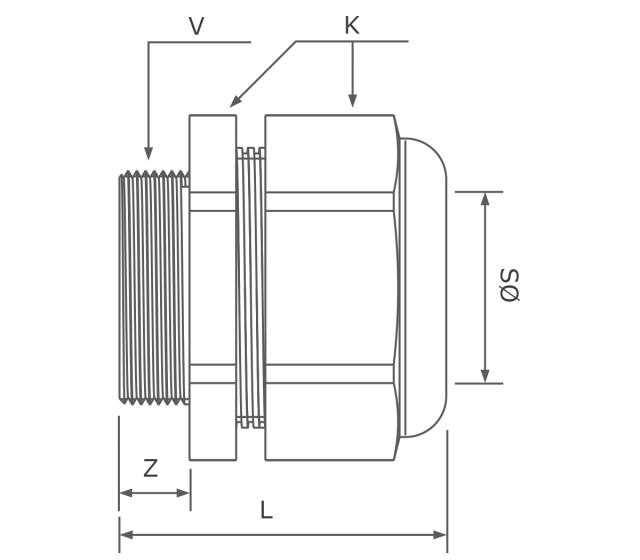

  • Cable clamp - Metric

    Cable clamp - Metric

    Cable clamp - Metric

    (dimensions in mm)

    (dimensions in mm)


    V (thread size)ě S (clamping range)KZL1
    M 20 x 1.56 - 12259101
    M 20 x 1.57 - 13259101
    M 20 x 1.510 - 14259101
    M 25 x 1.58 - 133010125
    M 25 x 1.59 - 173010125
    M 25 x 1.513 - 183010125
    M 32 x 1.57 - 153610149
    M 32 x 1.511 - 213610149
    M 32 x 1.518 - 253610149

  • Basket weave strain relief

    Basket weave strain relief

    Preserve the integrity of your connections

    Preserve the integrity of your connections

    Basket weave strain relief

    Available in multiple dimensions and suitable for cables with different diameters. Hanger grips also in stock.

  • Backshell and metal cable gland

    Backshell
    and metal cable gland

    for the Syntax« SB Series

    for the Syntax« SB Series

    Backshell and metal cable gland

    Besides ensuring an excellent mechanical strain relief keeping the cable in the centre of the connector, metal cable glands are provided with an internal rubber cone bushing ensuring IP67 waterproof protection. The screws in stainless steel have elastic anti-vibration washers. Clamping range varys according to connector size as shown in the following table.

  • Models and dimensions

    Models and dimensions

    Models and dimensions

    (dimensions in mm)

    (dimensions in mm)

    CCodeClamping Range ⌀FY MaxA ▒0.2Arrangement types
    8CC38-13.5832.328.116S-1 / 16-10
    12CC511.3-1935.737.320-15 / 22-1 / 22-2 / 22-22
    16CC615.5-23.83943.224-2 / 24-11 / 28A-9 / 28-22 /
    28-3 / 28-6 / 28-10
    20CC723.4-31.844.85432A-9 / 32-5
    28CC930-41.352.363.440A-10

  • Bushing

    Bushing

    Bushing is made of elastometric rubber and used with the metal
    cable clamp. It allows the use of cables with a diameter smaller than the nominal one.

    Bushing
  • Models and dimensions

    Models and dimensions

    (dimensions in mm)

    (dimensions in mm)

    Part numberFor metal clamp ⌀S⌀K Open⌀K ClosedL
    SBBC3C313.611.15.650.8
    SBBC5C518.913.746.8550.8
    SBBC6C623.71910.950.8
    SBBC7C731.623.815.7450.8
    SBBC9C941.131.7520.750.8
